LLL vertical spiral discharge centrifuge

Product features:

1. Continuous dehydration operation, low product moisture, large processing capacity, easy mixing, and small footprint;

2. The differential transmission part adopts a separate gearbox positioning structure, which does not require disassembly of the entire machine for major repairs and is easy to maintain;

3. The auxiliary system is simple, reliable in operation, and requires minimal maintenance;

4. There is a unique flushing mechanism inside the machine body, which can flush the accumulated coal inside during shutdown to ensure smooth operation next time;

5. The manufacturing accuracy of all supporting gears is above level 7, and all rotating parts have undergone dynamic balance testing, resulting in low operating noise and low vibration;

6. By adopting an integral casting worm wheel scraper discharge mechanism, the defects of complex manufacturing and difficult maintenance of assembled scrapers are overcome;

7. Observation holes are installed at multiple locations such as the hood and gearbox to facilitate the observation of the working conditions of key components such as the sieve basket and gears.

Working principle:

This machine operates based on the principle of centrifugal filtration. Wet coal passes through the feeding port and enters the space between the sieve basket 1 and the worm gear scraper through the distribution plate. Under the action of centrifugal force, water and some small particles of coal are used as centrifugal liquid to pass through the material layer, pass through the sieve basket, and then discharged from the machine through the discharge pipes located on both sides of the machine; Due to the speed difference between the worm wheel scraper and the sieve basket, the coal particles on the inside of the sieve basket are scraped off the sieve basket by the worm wheel scraper and fall into the outlet chute under the machine, which is discharged as dehydration products outside the machine.

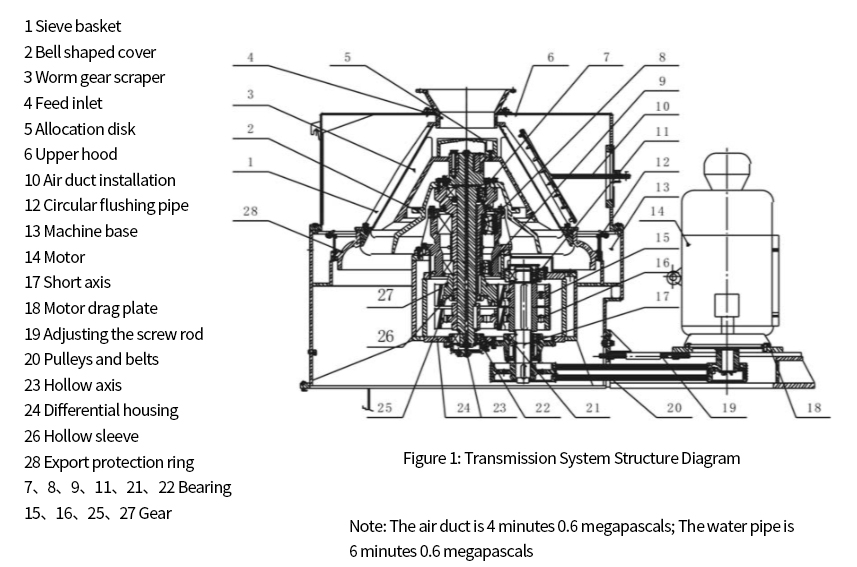

Product structure:

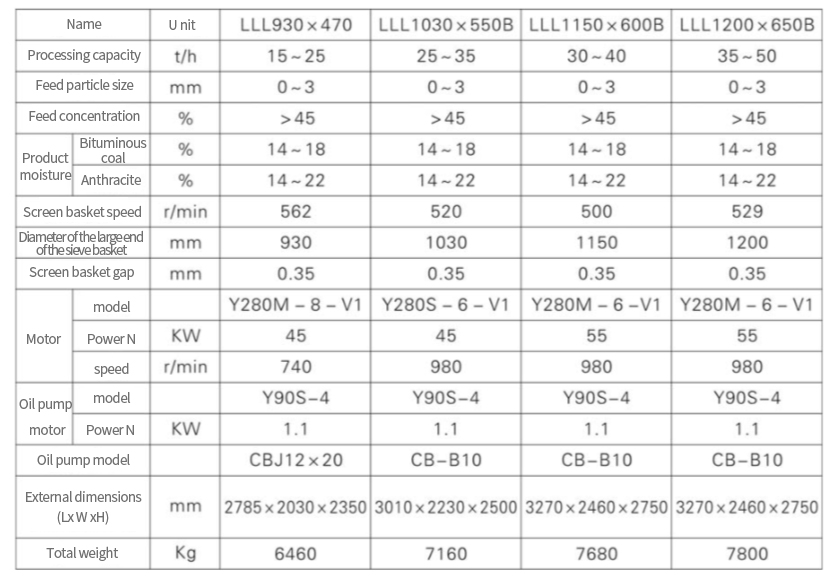

Product parameters:
